SRT compatible H.265/HEVC 4K/2K Codec system

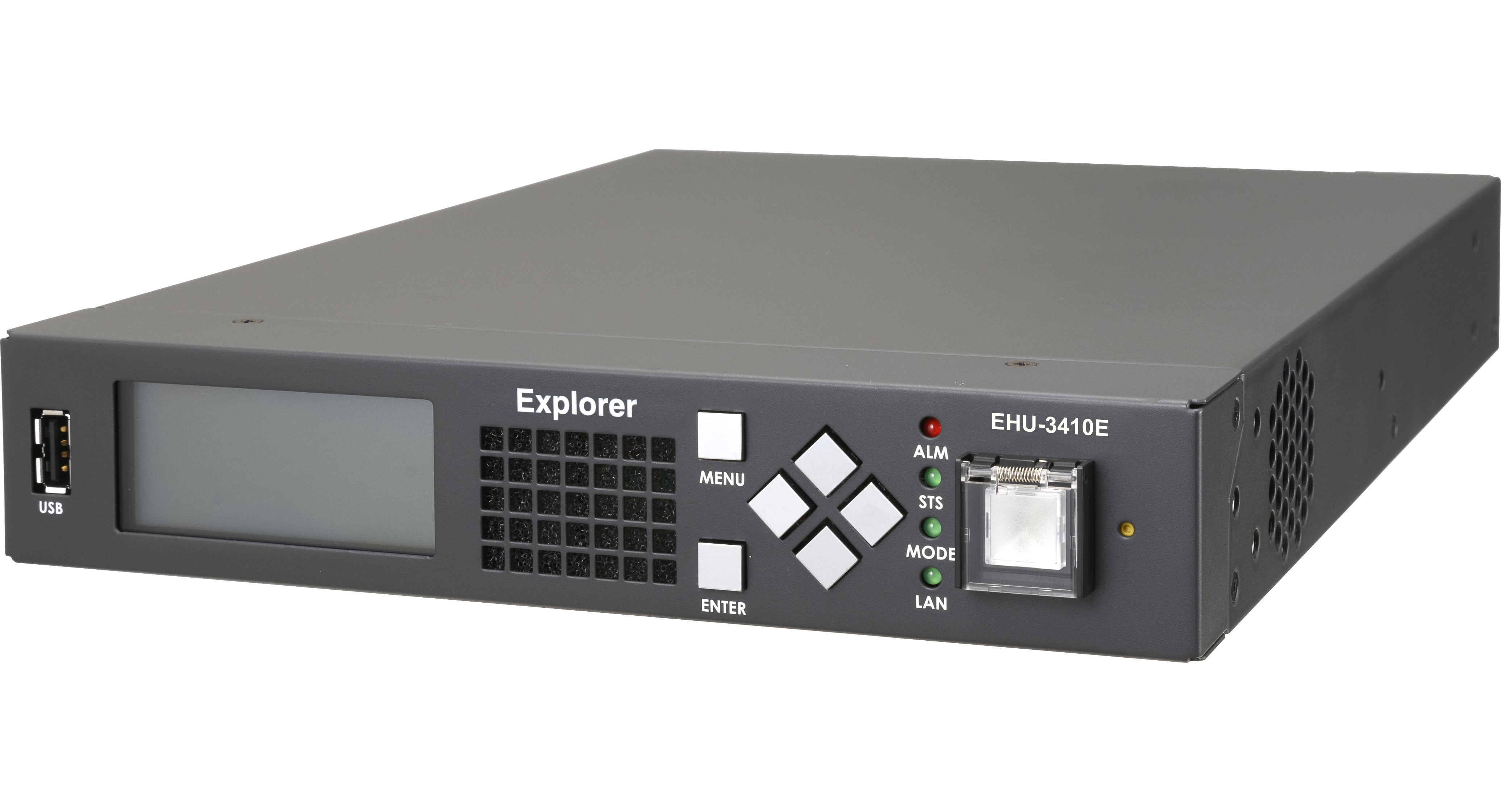

Model number：EHU-3410E/EHU-3410D
Overview

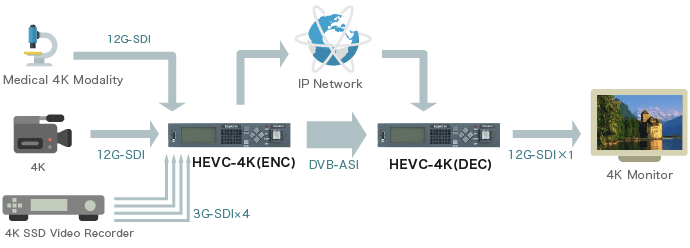

EHU-3410E / EHU-3410D is a 4K (3840x2160) video hardware codec that incorporates SRT transmission technology that enables the delivery of high-quality, safe and low-delay video over IP streaming for the first time in Japan. In addition to the SRT protocol, we have enhanced IP transmission functions such as RTMP, and supported H.265 / HEVC as well as H.264 / AVC coding and HDR video signal, responding to today's high image quality and flexible correspondence to IP streaming.
Specification
| Separation | Particular | EHU-3410E(Encoder)/EHU-3410D(Decoder) | |
|---|---|---|---|
| Video | Input/Output Format | 12G-SDI(SMPTE ST 2082 Compliant)3G-SDI(SMPTE424M)HD-SDI(SMPTE292M Compliant)SD-SDI(SMPTE259M Compliant) | |
| Input/Output Connectors | 12G/3G/HD/SD-SDI : BNC-J 75Ω | ||
| Video Coding | ISO/IEC 23008-2(H.265/HEVC) | ||
| ISO/IEC 14496-10(H.264/MPEG4-AVC) | |||
| Profile | HEVC | Main420 8bit / Main420 10bit / Main422 10bit | |
| H.264 | High420 8bit / High420 10bit / High422 10bit | ||
| GENLOCK | Black Burst(Same Phase),Tri-level Sync Signal | ||
| Video Format/Image Size | 3840x2160p(59.94/50)(12G,3Gx4)1920x1080p(59.94/50)(3G)1920×1080i(59.94/25)(HD)1280×720p(59.94/50)(HD)720×480i(59.94/50)(SD) | ||
| Ancillaries | Closed Captioning : SMPTE 334-1-2007AFD/Bar Data : SMPTE ST2016-1-2009Compile Method : SMPTE ST 291:2010 | ||
| Audio | Input/Output Format | 12G-SD I Signal(SMPTE ST 2082 Compliant)3G-SDI Embedded Signal(SMPTE424M Compliant)HD-SDI Embedded Signal(SMPTE299M Compliant)SD-SDI Embedded Signal(SMPTE272M Compliant) | |
| Input/Output Connectors | Embedded Signal : BNC-J 75Ω 12G/3G/HD/SD Automatic Switching | ||
| Audio Encoding /Decoding | MPEG2-AAC (ISO/IEC13818-7 Compliant)MPEG4-AAC(ISO/IEC 14496-3 Compliant） | ||
| Sampling Frequency/Ch. Number /Quantizing Bit Number | 48kHz / Max. 8Channel,Audio OFF / 16bit/20bit/24bit | ||
| Compression Rate | 64/96/128/192/256/320/384kbpsFollowing Encoder | ||
| TS-Signal | Transmission Bit Rate | 512kbps～110Mbps | |
| Stream Type | ISO/IEC13818-1(MPEG-2TS Compliant) 188byte | ||
| Interface | DVB-ASI,10BASE-T/100BASE-TX/1000BASE-T(Auto-MDIX) | ||
| Network | Transmission Protocol | RTP/RTCP(UDP/IP)/RTMP SRT(Secure Reliable Transport) |
|
| Packet Loss Recovery System | FEC, ARQ | ||
| Communication System | Unicast, Multicast | ||
| Control | Web Control | Web GUI | |
| Operational Console | Front Control PanelPreset x4 | ||
| Management Protocol | HTTPS (Web Browser),SNMPv1 / SNMPv2c | ||
| System | Built-in Testing Signal | Video : Color BarsAudio : Sin Wave Signal(-18/-20dBFS) | |
| RS-232C baud rate | 1200~115200baud | ||
| Flow Control | Non/Hardware Selectable | ||
| Spec | Power Supply Input | DC12V (AC Conversion Adapter Included) | |
| External Dimension・Weight | 210(W)x300(D)x41(H)mm, 2.2kg | ||
| Use Environment | Temperature : 0~40℃, Humidity : 30%～80%(No Dewing) | ||
| Accessory | Accessories | AC adaptorCD-ROM（Operational Manual） | |
