SRT compatible H.265/HEVC 2K Codec system

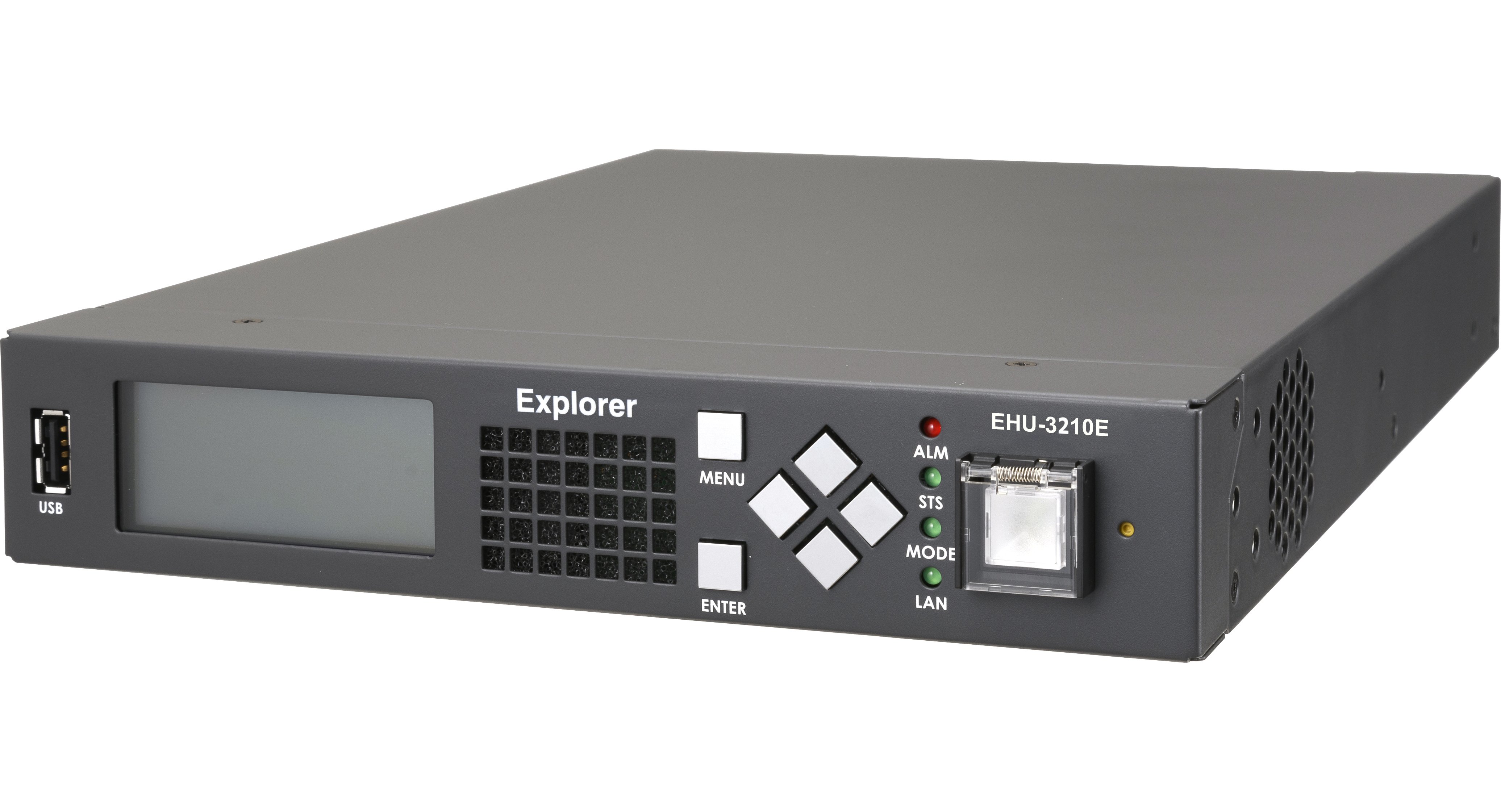

Model number：EHU-3210E/EHU-3210D
Overview

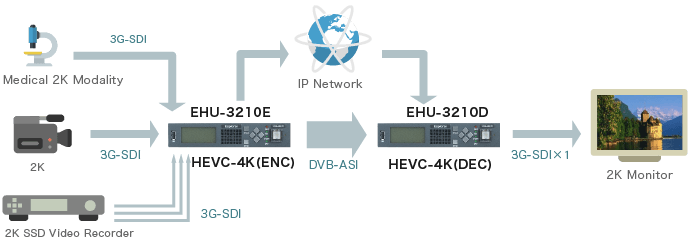

EHU-3210E / EHU-3210D is a streaming hardware codec system for 2K. EHU-3210E / EHU-3210D mounts an open-source video transport protocol, SRT that allows delivering secure, high quality, and low latency video across the public internet. It changes other IP transmission functions such as RTMP and supports H.265 / HEVC, H.264 / AVC coding, and HDR video signal.
Specification
| Separation | Particular | EHU-3210E(Encoder)/EHU-3210D(Decoder) | |
|---|---|---|---|
| Video | Input/Output Format | 3G-SDI(SMPTE424M)HD-SDI(SMPTE292M compliant)SD-SDI(SMPTE259M compliant) | |
| Input/Output Connectors | 3G/HD/SD-SDI : BNC-J 75Ω | ||
| Video Cording | ISO/IEC 23008-2(H.265/HEVC) | ||
| ISO/IEC 14496-10(H.264/MPEG4-AVC) | |||
| Profile | HEVC | Main420 8bit / Main420 10bit / Main422 10bit | |
| H.264 | High420 8bit / High420 10bit / High422 10bit | ||
| GENLOCK | Black Burst(same phase)、Tri-level sync signal | ||
| Video Format/Image Size | 1920x1080p(59.94/50)(3G)1920×1080i(59.94/25)(HD)1280×720p(59.94/50)(HD)720×480i(59.94/50)(SD) | ||
| Ancillaies | Closed Captioning : SMPTE 334-1-2007AFD/Bar data : SMPTE ST2016-1-2009Compile Method : SMPTE ST 291:2010 | ||
| HDR | HLG | ||
| Audio | Input/Output Format | 3G-SDI embedded signal(SMPTE424Mcompliant)HD-SDI embedded signal(SMPTE299M compliant)SD-SDI embedded signal(SMPTE272M compliant) | |
| Input/Output Connectors | embedded signal : BNC-J 75Ω 12G/3G/HD/SD automatic switching | ||
| Audio Encoding /Decoding | MPEG2-AAC (ISO/IEC13818-7 compliant)MPEG4-AAC(ISO/IEC 14496-3 compliant）LPCM (SMPTE 302M Compliant) | ||
| Sampling Frequency/Ch. Number /Quantizing Bit Number | 48kHz / Max. 8Channel / 16bit/20bit/24bit | ||
| Compression Rate (Following Encoder) | MONO:64/96/128/192/256kbpsMONOx2, STEREO:64/96/128/192/384kbps5.1ch, 7.1ch :384/512/800kbps | ||
| TS-Signal | Transmission Bit Rate | 1000kbps～100Mbps | |
| Stream Type | ISO/IEC13818-1(MPEG-2TS Compliant) 188byte | ||
| Interface | DVB-ASI、10BASE-T/100BASE-TX/1000BASE-T(Auto-MDIX) | ||
| Network | Transmission Protocol | RTP/RTCP(UDP/IP)/RTMP SRT(Secure Reliable Transport) |
|
| Network Function | HTTPS (Web Browser),SNMPv1 / SNMPv2c | ||
| packet loss recovery system | FEC, ARQ | ||
| Communication system | unicast, multicast | ||
| Control | Web Control | Web GUI | |
| Operational Console | front control panelpreset x4 | ||
| System | Built-in Testing Signal | Video : color barsAudio : Sine Wave Signal(-18/-20dBFS) | |
| RS-232C baud rate | 1200~115200baud | ||
| Flow Control | Non/Hardware selectable | ||
| Spec | Power Supply Input | DC12V (AC conversion adapter included) | |
| External Dimension・Weight | 210(W)x300(D)x41(H)mm, 2.2kg | ||
| Use Environment | temperature : 0~40℃, humidity : 30%～80%(no dewing) | ||
| Accessory | Accessories | AC adaptorCD-ROM（Operational Manual） | |
