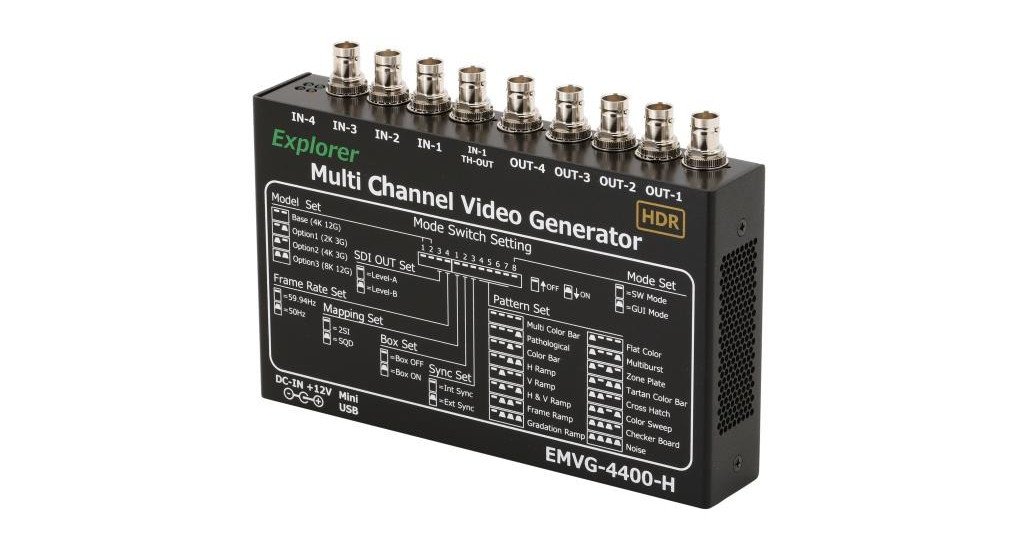

4K/8K HDR Compatible Small Test Pattern Generator
Model number：EMVG-4400-H/ EMVG-4400-H8
Overview
The EMVG series is a compact test signal generator equipped with a test pattern including HDR patterns from 2K / 4K video to 8K video and an SDI transmission line check function. The compact chassis is equipped with a full-fledged test pattern, and it can be used from the confirmation work of visual equipment and systems outside the event hall, for R & D applications in the laboratory.
Features
◆ Small size and light weight (H) 35 mm x (W) 190 mm x (D) 115 mm, 550 g
◆ 12G-SDI 4 lines independent output (4K mode)
◆ 30 or more full-scale pattern loading including HDR pattern
◆ Video pattern in scroll mode
◆ Equipped with check / monitor function and transmission delay measurement
function for SDI transmission line
◆ SW / GUI selectable user I / F, PC-less operation possible
◆ We cope with battery drive by V mount adapter
Specification
| Item | EMVG-4400-H | ||||
|---|---|---|---|---|---|
| EMVG-4400-H8 | |||||
| Format | 4K 12G | 2K | 4K 3Gx4 | 8K 12Gx4 | |
| Video Input / Output | 12G-SDI 4Lines | 3G-SDI 4Lines | 3G-SDI 1Line | 12G-SDI 1Line | |
| Image Format (Reference SMPTE Standard) | 3840×2160p(ST2082 Compliant) | 1920×1080p(ST424 Compliant) | 3840×2160p(ST425 Compliant) | 7680×4320p(ST2082 Compliant) | |
| Sampling / Bit Depth / Frame Rate | 4:2:2(Y'Cｂ'Cr') / 10Bit/(60Hz/59.94Hz/50Hz) | ||||
| Mapping | 2SI | - | 2SI,SQD | 2SI,SQD | |
| 3G Mapping | - | LevelA,LevelB | LevelA,LevelB | - | |
| Audio Format | 48kHz (Synchronize With Video Clock) , 24bit | ||||
| Audio Output Channel | 8 CH/1 Line | ||||
| Setting Interface | Piano SW, Mini USB | ||||
| Test PatternSignal | HDR | HLG Color Bar (ARIB STD-B72), PLUGE, Contrast Ratio Measurement,Customized Color Ramp | |||
| Multi Format Color Bar | (4K,8K):ARIB STD-B66 UHD Multi Format Color Bar(2K):ARIB STD-B28 HDTV Multi Format Color Bar | ||||
| Others | Pathological, Color Bar, Horizontal Ramp, Vertical Ramp,Horizontal & Vertical Ramp*, Frame Ramp, Gradation Ramp | ||||
| 100%Flat Color, Custom Flat Color, Multiburst, Zone Plate*, Tartan Color Bar*,Cross Hatch*, Color sweep*, Checker Board, Random Noise | |||||
| Test Audio Signal | Group | 4 CH×2 Group * Audio Output Is only one line | |||
| Frequency / Signal Level | Mute, 400Hz, 800Hz, 1kHz, 2kHz, 3kHz, 4kHz, 6kHz, 8kHz / -18dB, -20dB * Frequency Set for each channel group | ||||
| Functions | Test Signal Generation | Input Through Function, Over Lap*, Input Synchronization Function, Scroll, Moving BOX Display* , Cross Line Display*, Payload ID Change etc. | |||
| Transmission Line Checking | Normal /Abnormal Packet Count, SDI Status Monitor, Transmission Data Compare, Latency Measurement | ||||
| Equipment Specifications | Operating Temperature / Humidity / Environment | 0℃～40℃/30%～80%(Non-Condensing) / Indoor | |||
| Power Supply Voltage / Power Consumption | DC12V /Maximum 23W | ||||
| Dimension / Weight | (H)35.0 x (W)190 x (D)115 mm / 550g | ||||
| Accessories | AC Adapter, CD-ROM(PC Application for Setting, Instruction Manual) | ||||
| Optional Item | V Mount Battery Plate（EMVG-P-V212), Connection Cable (EMVG-C-DTAP) | ||||
Function Guide

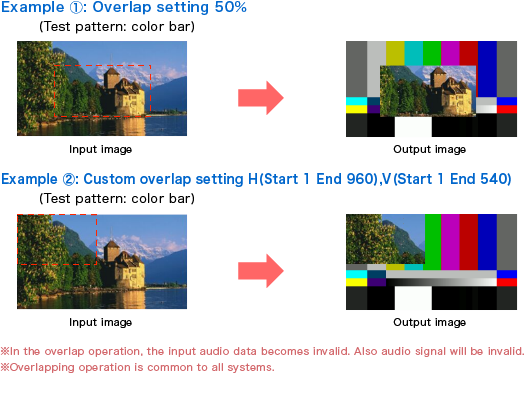

Overlap input image with the test pattern
It is possible to display overlapped images displayed on the loaded pattern
（ The overlap area can be set individually. ）

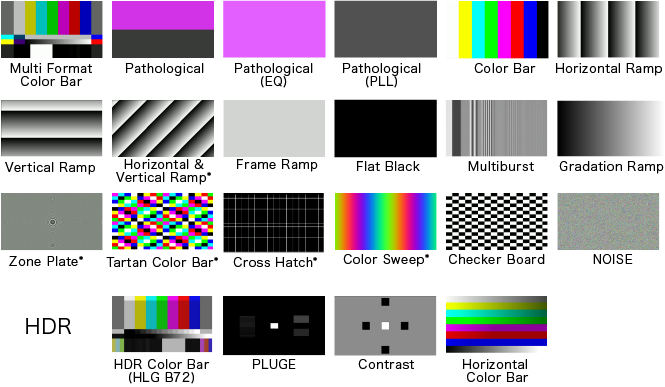

Test Patterns
Equipped with the following 24 patterns

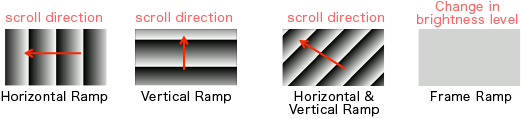

Scroll Pattern
The scroll pattern consists of 4 types Horizontal Ramp,Vertical Ramp,Horizontal Vertical Ramp ,Frame and Ramp. Change pattern of scroll speed and brightness level can be changed from the included application software.
Scroll speed can be selected in 4 steps.(None/Low/Middle/High)(In Option3 is Low speed only.）

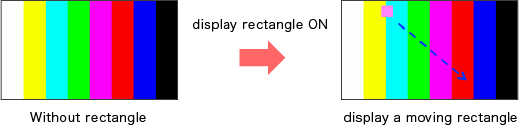

Superimpose Rectangle
It is possible to display a moving rectangle on a test pattern.
Three sizes of rectangle can be selected.(Small/Middle/Big)
Three kinds of moving speed of rectangle can be selected .(None/Low/Middle/High)
※Common to scroll pattern
The color of the rectangle can choose any color.

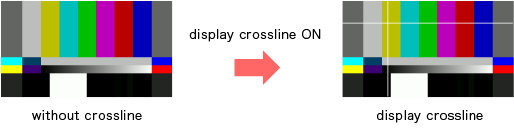

Crossline
You can display vertical and horizontal white lines at arbitrary positions
※ It can be displayed only when BOX display is OFF
The functions of overlap, box display, and cross line are not supported in the EMVG-4400-H8

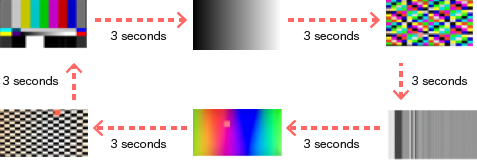

Play list function
PayloadID change function
Output selection：
Select automatically generated data or custom numbers and output.
Byte2：
Select SDR / HDR information
Byte3：
Select color gamut informationCustom value inputUSER custom specifies all values

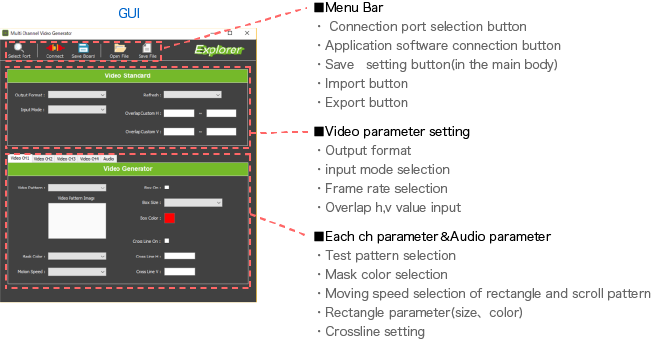

Attached Software Guide
Parameter setting by USB Remote operation
Remote operation is possible using the attached application software by connecting the main unit and the PC with a USB cable. All parameter setting is possible by using the application software.
